Furnish New Battery Exide Battery Sonnenschein A500 A512 60G6

Name: Furnish_New_Battery_Exide_Battery_Sonnenschein_A500_A512_60G6
Brand: Pb_Ca_VRLA_GEL.png
SKU: Furnish_New_Battery_Exide_Battery_Sonnenschein_A500_A512_60G6
Price: 239.48 USD
Availability: InStock

Technology: Pb_Ca_VRLA_GEL.png
Furnish New Battery Exide Battery Sonnenschein A500 A512 60G6

$239.48

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Sonnenschein A500 A512 60G6

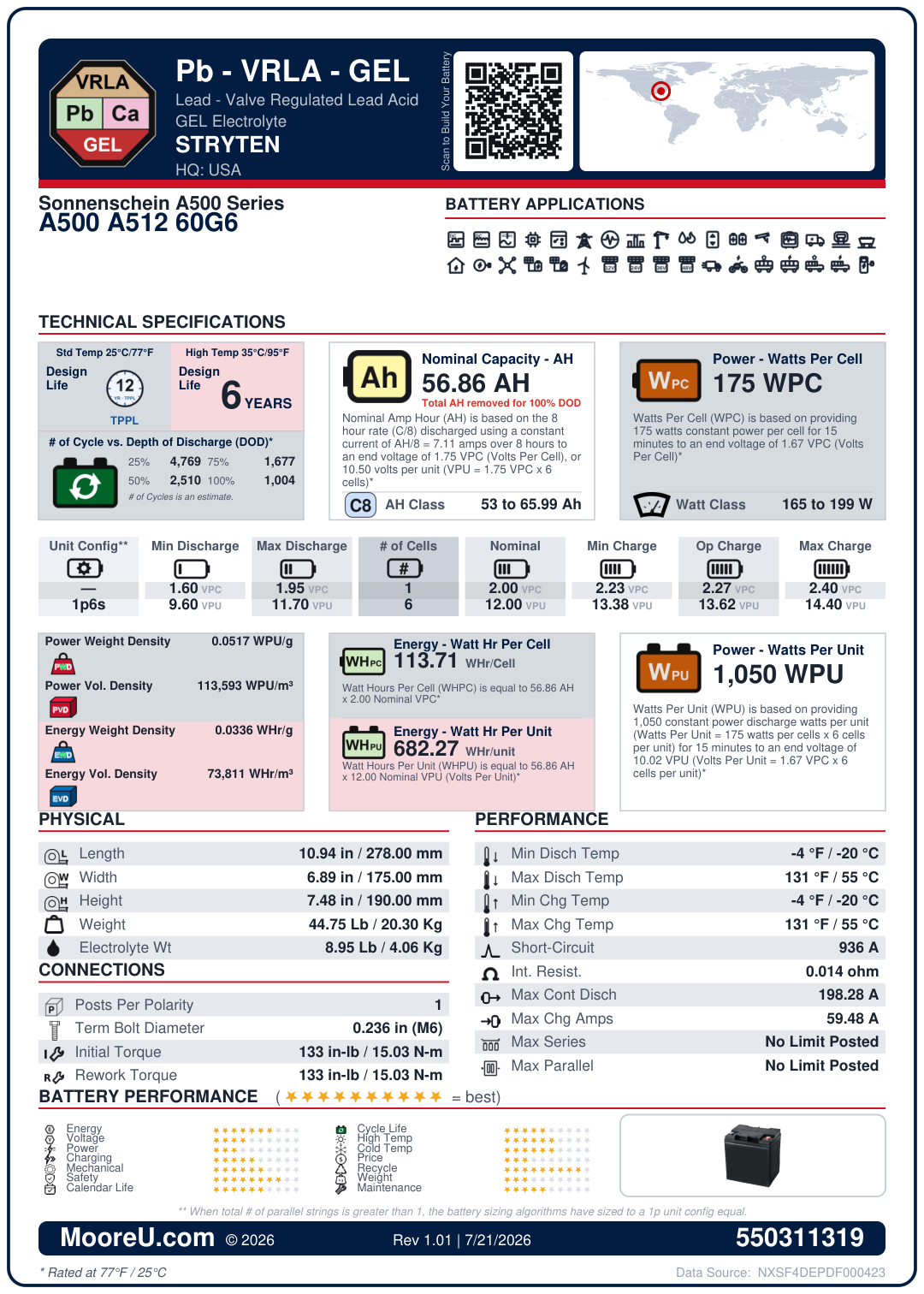

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	Exide Battery Sonnenschein A500 A512 60G6
Adjustment	1
AH Per String	56.856
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	936
Internal Resistance	0.014 Ohms
Dimensions (L x W x H)	10.9448878 x 6.8897675 x 7.480319 in
Weight	44.753786 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	198.275 Amps
Max Charge Amps	59.4825 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	175
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	8.9507572 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
