Furnish New Battery Exide Battery Sonnenschein A500 A512 85A Post

Name: Furnish_New_Battery_Exide_Battery_Sonnenschein_A500_A512_85A_Post
Brand: Pb_Ca_VRLA_GEL.png
SKU: Furnish_New_Battery_Exide_Battery_Sonnenschein_A500_A512_85A_Post
Price: 343.6 USD
Availability: InStock

Technology: Pb_Ca_VRLA_GEL.png
Furnish New Battery Exide Battery Sonnenschein A500 A512 85A Post

$343.60

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Sonnenschein A500 A512 85A Post

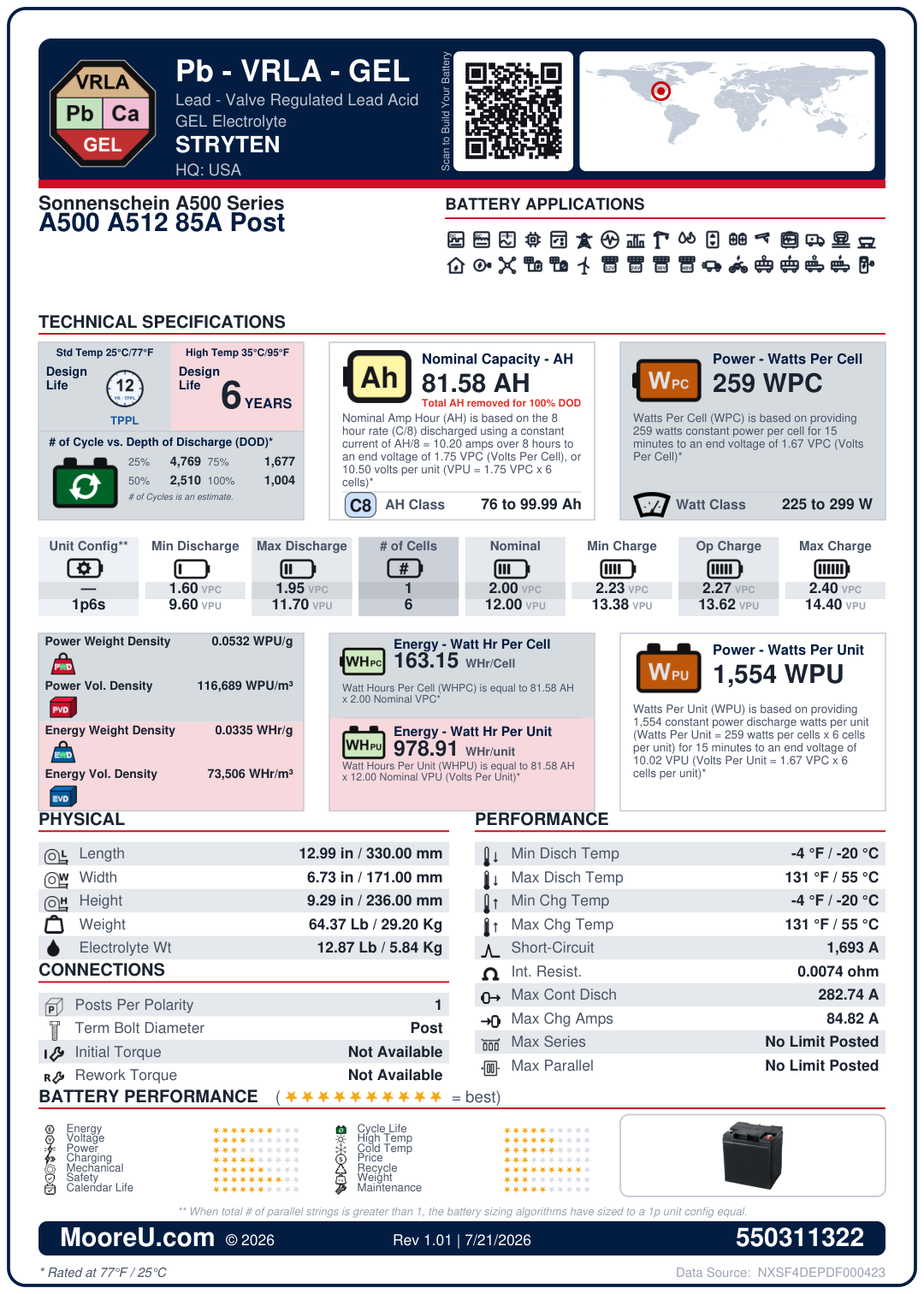

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	Exide Battery Sonnenschein A500 A512 85A Post
Adjustment	1
AH Per String	81.576
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	1693
Internal Resistance	0.0074 Ohms
Dimensions (L x W x H)	12.992133 x 6.7322871 x 9.2913436 in
Weight	64.374904 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Post mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Post
FOB	T
Max Continuous Discharge	282.735 Amps
Max Charge Amps	84.8205 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	259
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.8749808 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
