Furnish New Battery Exide Battery Sonnenschein A600 A606 300 6V 6OPzV 300 FM8
Technology: Pb_Ca_VRLA_GEL.pngFurnish New Battery Exide Battery Sonnenschein A600 A606 300 6V 6OPzV 300 FM8
$643.81
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery Exide Battery Sonnenschein A600 A606 300 6V 6OPzV 300 FM8

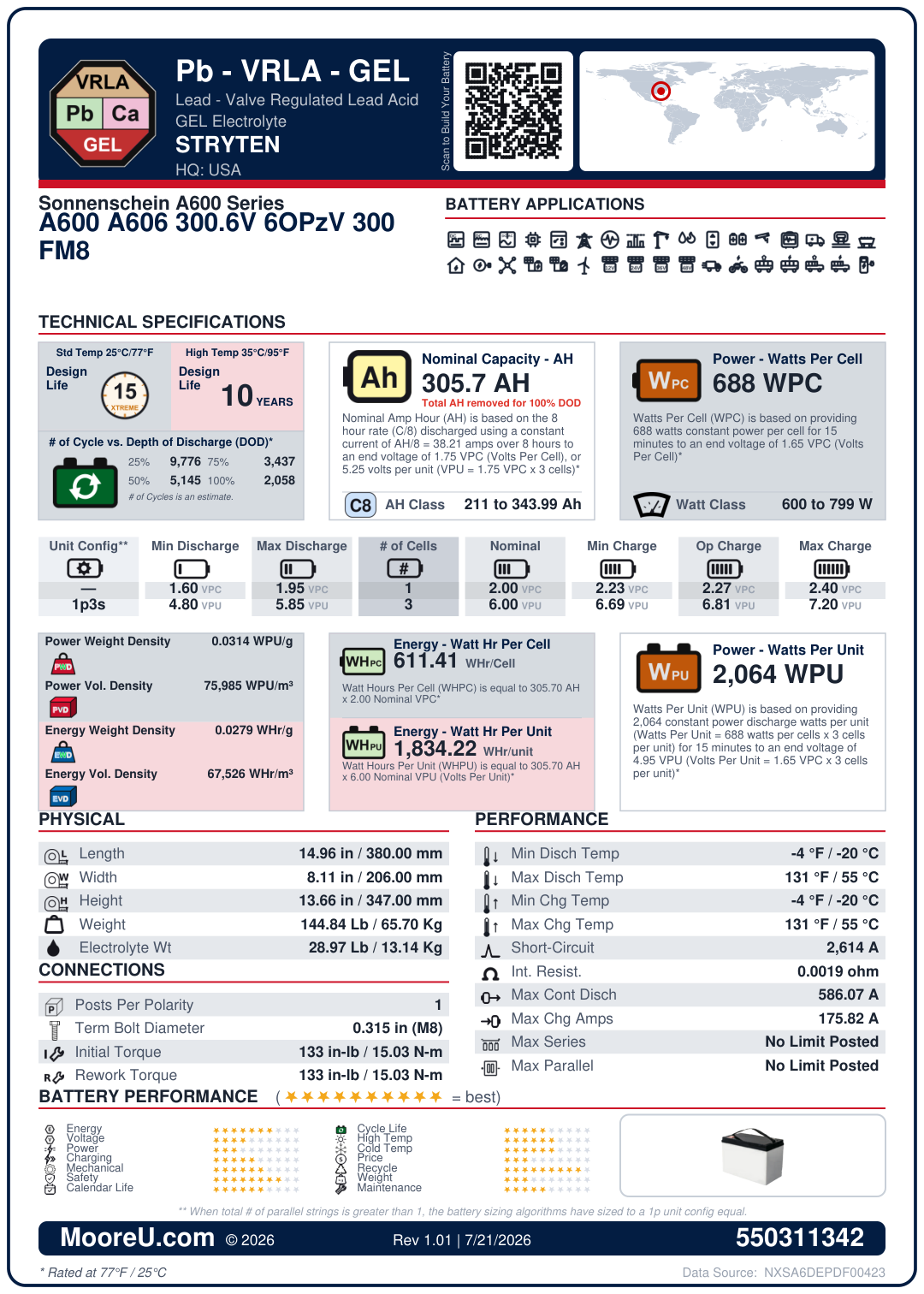

| Battery Model | Exide Battery Sonnenschein A600 A606 300 6V 6OPzV 300 FM8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 305.704 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 3 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 2614 |
| Internal Resistance | 0.0019 Ohms |
| Dimensions (L x W x H) | 14.960638 x 8.1102406 x 13.6614247 in |
| Weight | 144.843534 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 586.07 Amps |
| Max Charge Amps | 175.821 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 688 |
| Watts Per Cell Rating | 15 min @ 1.65 VPC |
| Weight of Electrolyte | 28.9687068 lbs |
