Furnish New Battery Exide Battery Gel Sonnenschein Light Traction GF 06 240 V Post
Technology: Pb_Ca_VRLA_GEL.pngFurnish New Battery Exide Battery Gel Sonnenschein Light Traction GF 06 240 V Post
$474.54
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery Exide Battery Gel Sonnenschein Light Traction GF 06 240 V Post

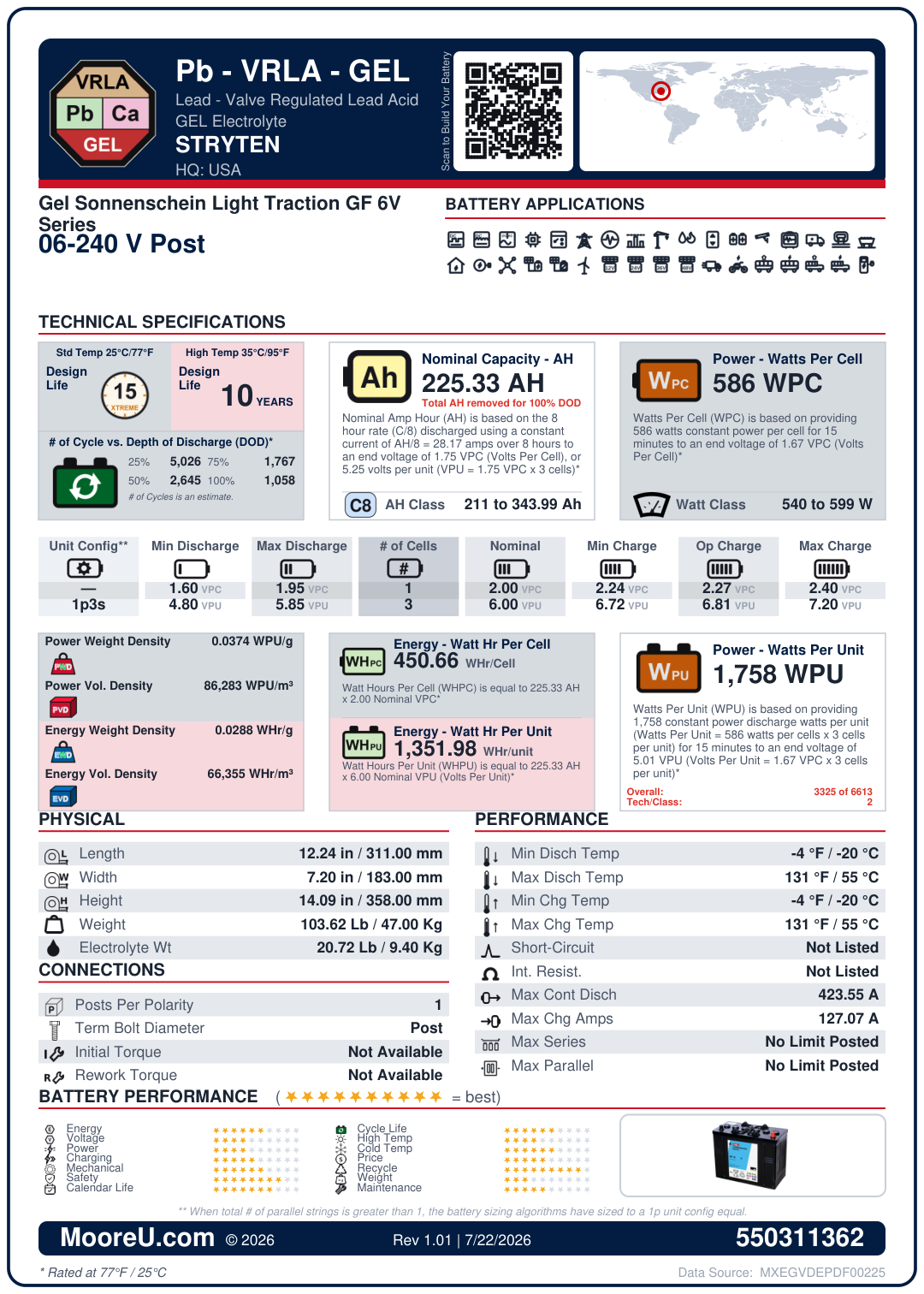

| Battery Model | Exide Battery Gel Sonnenschein Light Traction GF 06 240 V Post |
|---|---|
| Adjustment | 1 |
| AH Per String | 225.3293091 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 3 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 0 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 12.2441011 x 7.2047283 x 14.0944958 in |
| Weight | 103.61714 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (Post mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Post |
| FOB | T |
| Max Continuous Discharge | 423.5529219 Amps |
| Max Charge Amps | 127.0658766 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 586 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 20.723428 lbs |
