Furnish New Battery Exide Battery Gel Sonnenschein Light Traction GF 12 051 Y G1 GM6

Name: Furnish_New_Battery_Exide_Battery_Gel_Sonnenschein_Light_Traction_GF_12_051_Y_G1_GM6
Brand: Pb_Ca_VRLA_GEL.png
SKU: Furnish_New_Battery_Exide_Battery_Gel_Sonnenschein_Light_Traction_GF_12_051_Y_G1_GM6
Price: 196.85 USD
Availability: InStock

Technology: Pb_Ca_VRLA_GEL.png
Furnish New Battery Exide Battery Gel Sonnenschein Light Traction GF 12 051 Y G1 GM6

$196.85

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Gel Sonnenschein Light Traction GF 12 051 Y G1 GM6

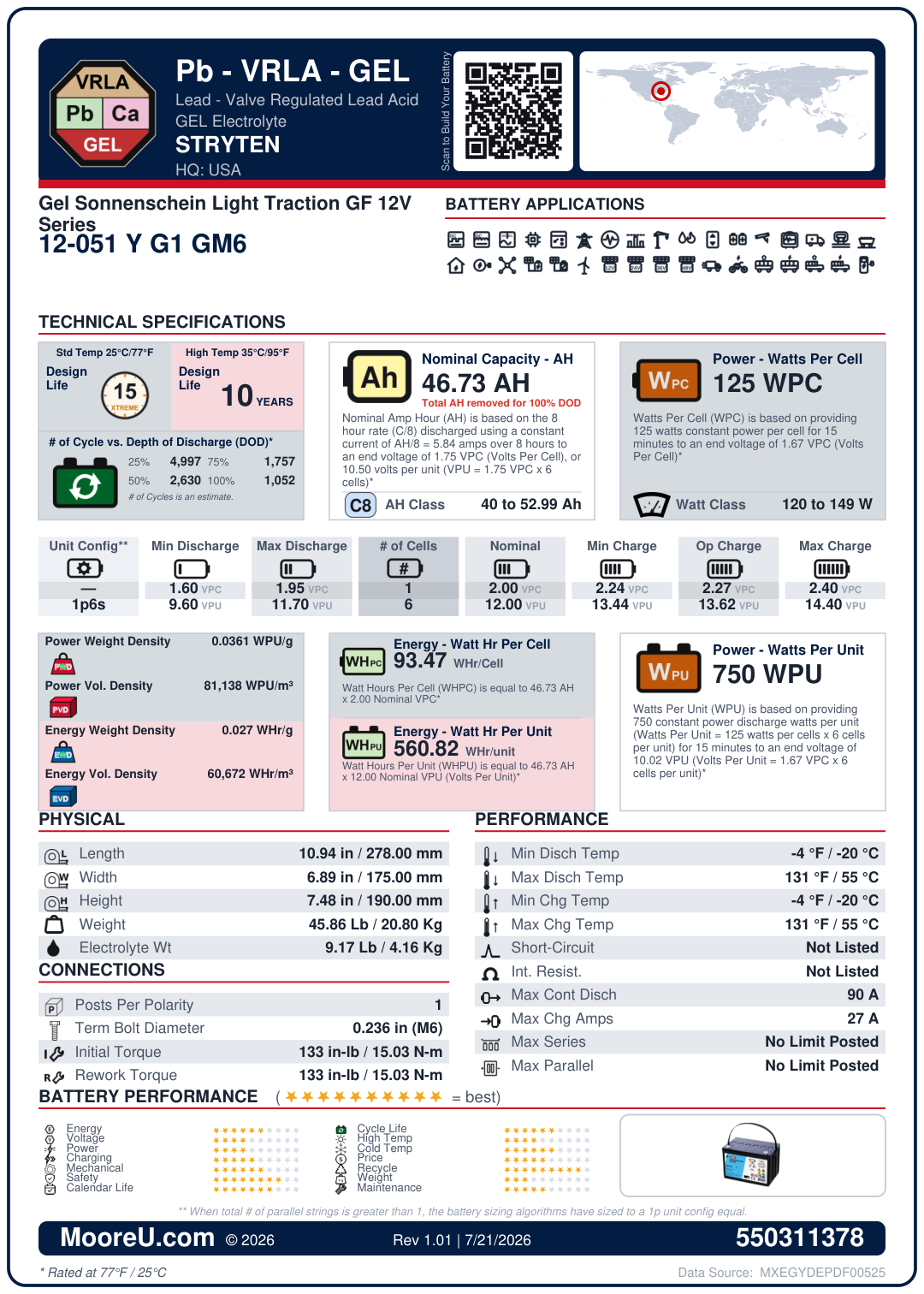

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Product Install/Operations Manual

Battery Model	Exide Battery Gel Sonnenschein Light Traction GF 12 051 Y G1 GM6
Adjustment	1
AH Per String	46.7349678
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	0
Internal Resistance	0 Ohms
Dimensions (L x W x H)	10.9448878 x 6.8897675 x 7.480319 in
Weight	45.856096 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	90.00499591 Amps
Max Charge Amps	27.00149877 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	125
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	9.1712192 lbs
