Furnish New Battery Exide Battery Gel Sonnenschein Material Handling 80AH Plate 4EPzV 320 FM10
Technology: Pb_Ca_VRLA_GEL.pngFurnish New Battery Exide Battery Gel Sonnenschein Material Handling 80AH Plate 4EPzV 320 FM10
$200.86
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery Exide Battery Gel Sonnenschein Material Handling 80AH Plate 4EPzV 320 FM10

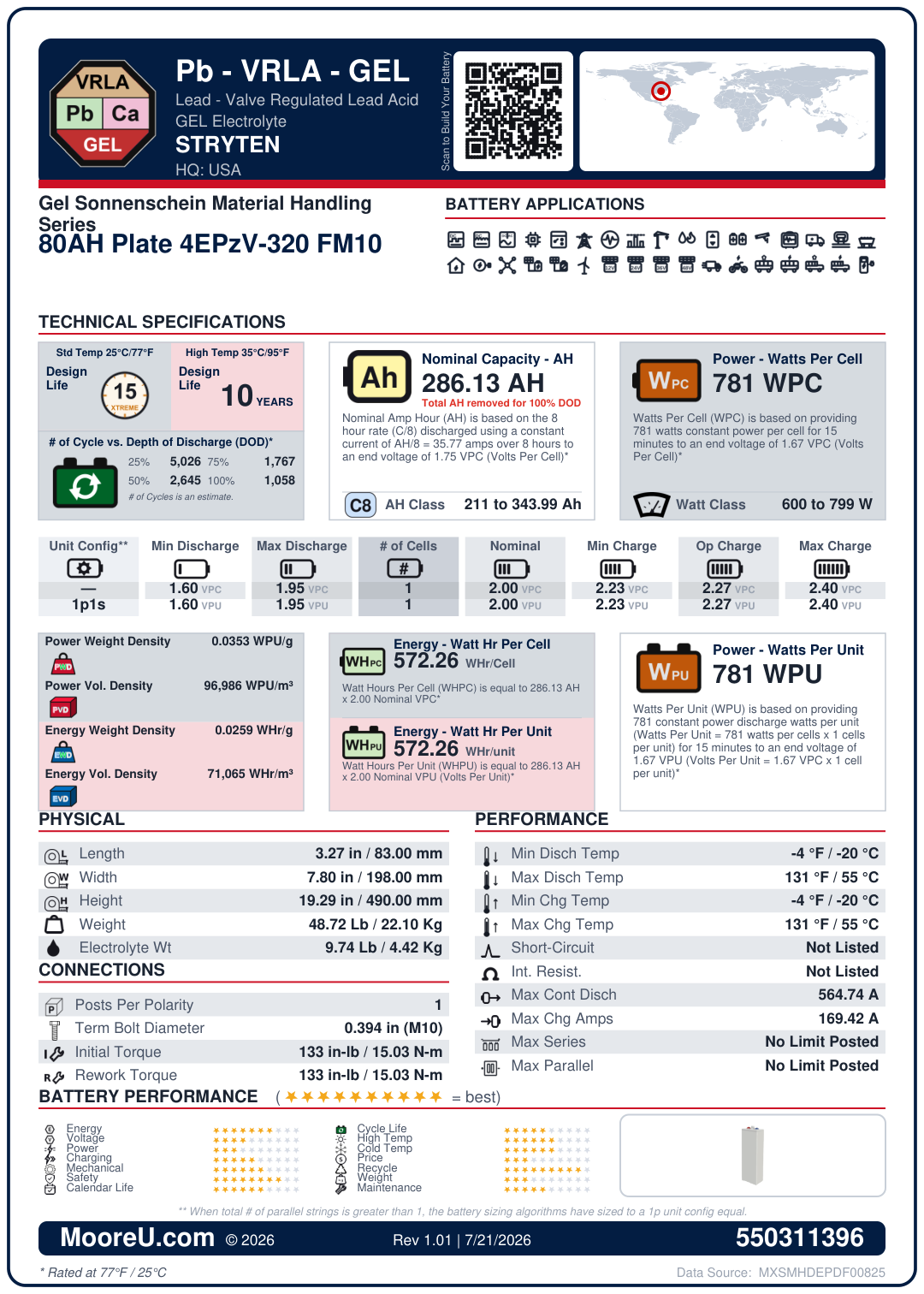

| Battery Model | Exide Battery Gel Sonnenschein Material Handling 80AH Plate 4EPzV 320 FM10 |
|---|---|
| Adjustment | 1 |
| AH Per String | 286.1324559 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 0 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 3.2677183 x 7.7952798 x 19.291349 in |
| Weight | 48.722102 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3937 in (M10 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M10 |
| FOB | T |
| Max Continuous Discharge | 564.7372292 Amps |
| Max Charge Amps | 169.4211688 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 781 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 9.7444204 lbs |
