Furnish New Battery Exide Battery Sonnenschein Solar S12 90A Post

Name: Furnish_New_Battery_Exide_Battery_Sonnenschein_Solar_S12_90A_Post
Brand: Pb_Ca_Sn_VRLA_GEL.png
SKU: Furnish_New_Battery_Exide_Battery_Sonnenschein_Solar_S12_90A_Post
Price: 322.19 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_GEL.png
Furnish New Battery Exide Battery Sonnenschein Solar S12 90A Post

$322.19

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Sonnenschein Solar S12 90A Post

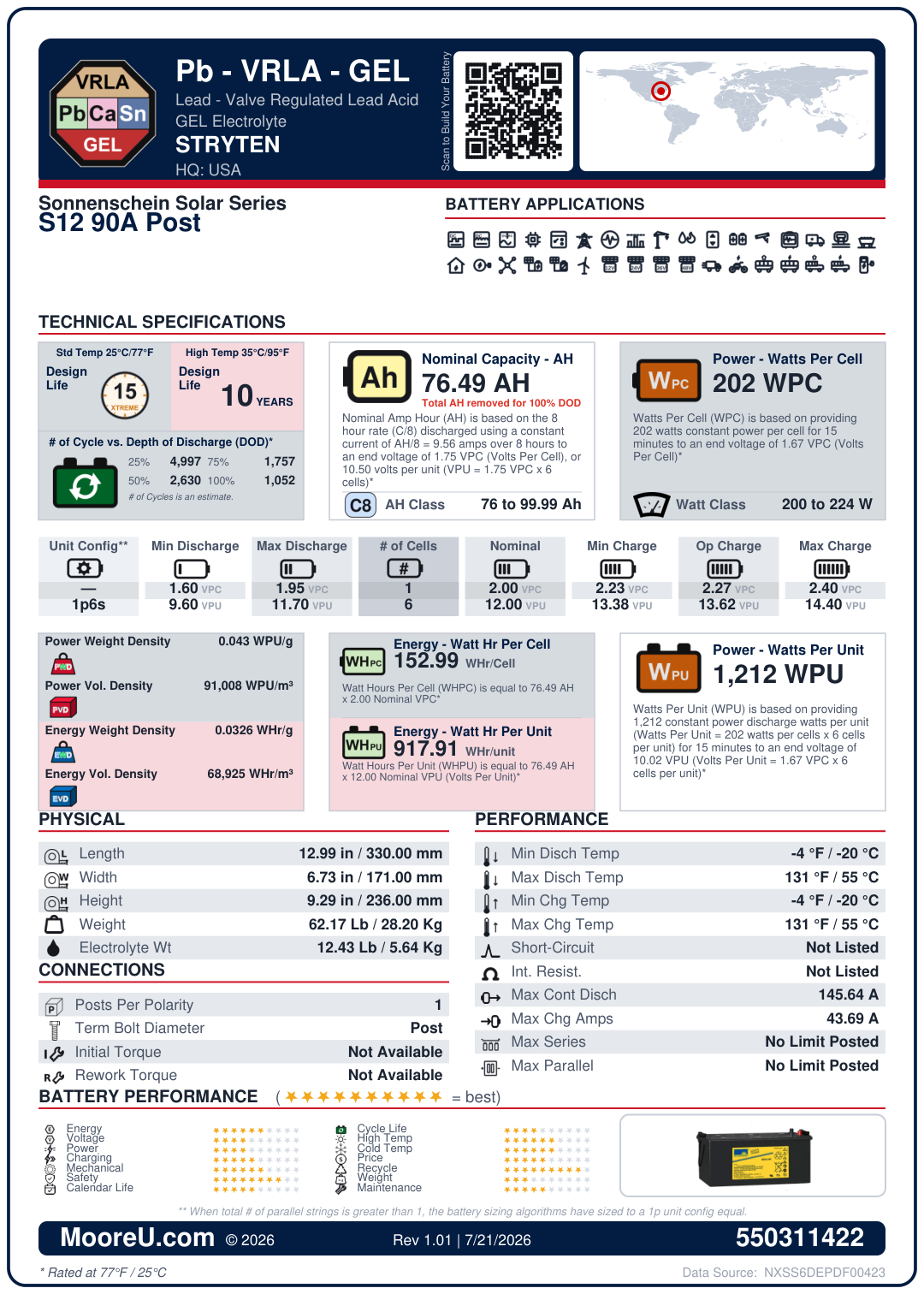

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	Exide Battery Sonnenschein Solar S12 90A Post
Adjustment	1
AH Per String	76.49273239
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	0
Internal Resistance	0 Ohms
Dimensions (L x W x H)	12.992133 x 6.7322871 x 9.2913436 in
Weight	62.170284 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Post mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Post
FOB	T
Max Continuous Discharge	145.642 Amps
Max Charge Amps	43.6926 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	202
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.4340568 lbs
