Furnish New Battery Exide Battery Sonnenschein Solar Block SB 12 75A Post

Name: Furnish_New_Battery_Exide_Battery_Sonnenschein_Solar_Block_SB_12_75A_Post
Brand: Pb_Ca_Sn_VRLA_GEL.png
SKU: Furnish_New_Battery_Exide_Battery_Sonnenschein_Solar_Block_SB_12_75A_Post
Price: 272.62 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_GEL.png
Furnish New Battery Exide Battery Sonnenschein Solar Block SB 12 75A Post

$272.62

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Sonnenschein Solar Block SB 12 75A Post

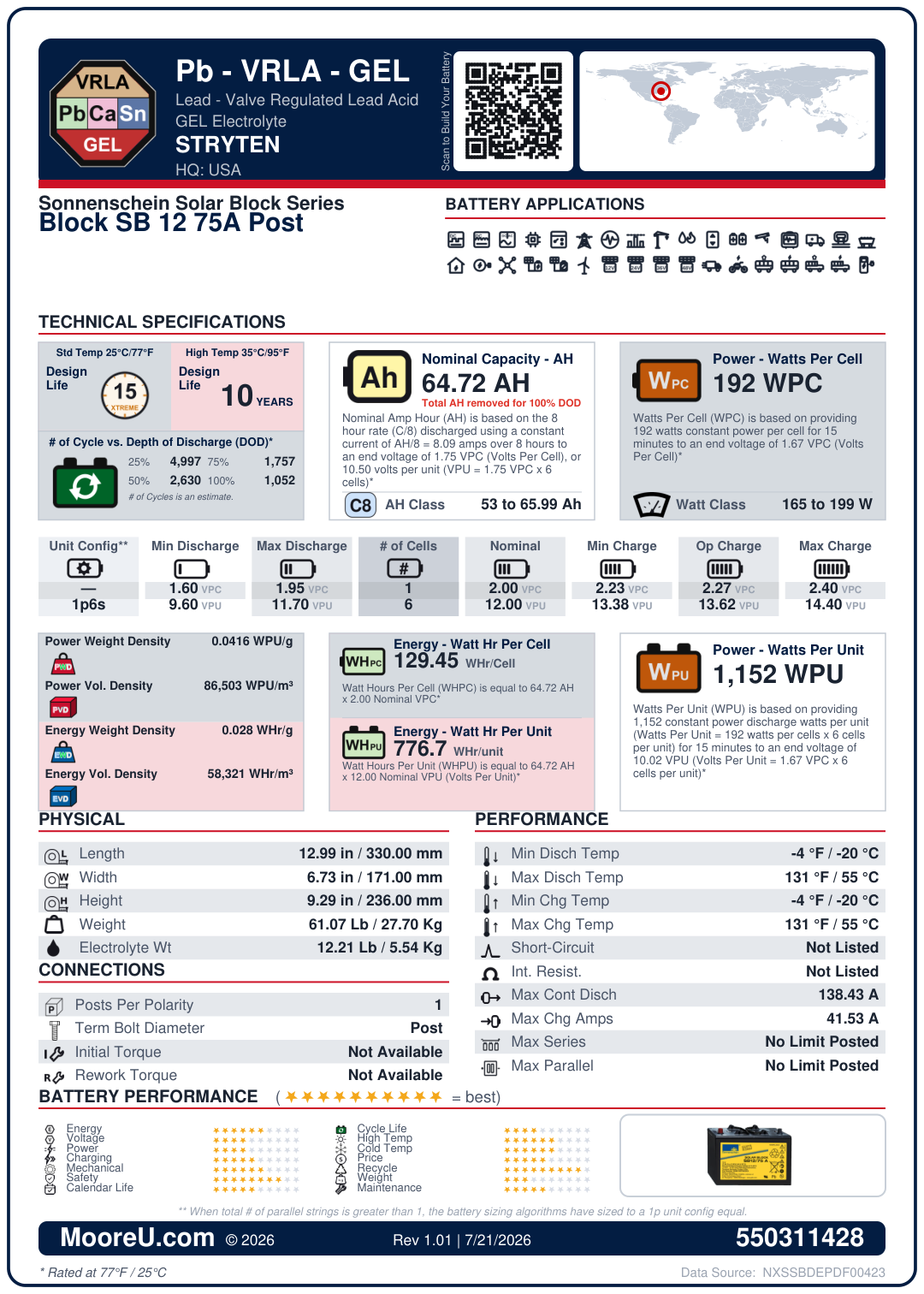

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	Exide Battery Sonnenschein Solar Block SB 12 75A Post
Adjustment	1
AH Per String	64.72461972
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	0
Internal Resistance	0 Ohms
Dimensions (L x W x H)	12.992133 x 6.7322871 x 9.2913436 in
Weight	61.067974 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Post mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Post
FOB	T
Max Continuous Discharge	138.432 Amps
Max Charge Amps	41.5296 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	192
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.2135948 lbs
