Furnish New Battery Exide Battery Sonnenschein Solar Block SB 12 130A Post
Technology: Pb_Ca_Sn_VRLA_GEL.pngFurnish New Battery Exide Battery Sonnenschein Solar Block SB 12 130A Post
$433.71
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery

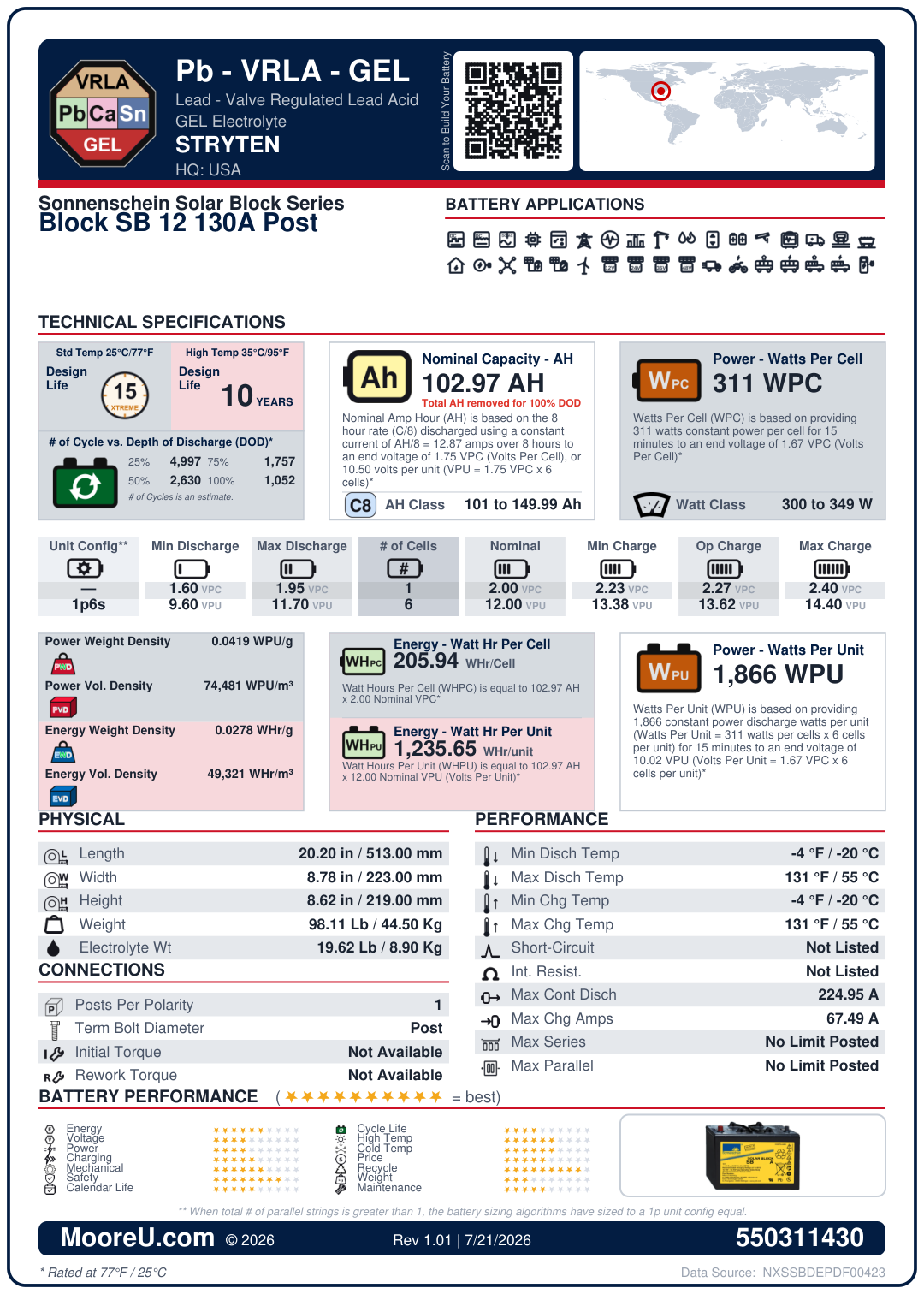

Furnish New Battery Exide Battery Sonnenschein Solar Block SB 12 130A Post
| Battery Model | Exide Battery Sonnenschein Solar Block SB 12 130A Post |
|---|---|
| Adjustment | 1 |
| AH Per String | 102.9709859 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 0 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 20.1968613 x 8.7795323 x 8.6220519 in |
| Weight | 98.10559 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (Post mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Post |
| FOB | T |
| Max Continuous Discharge | 224.952 Amps |
| Max Charge Amps | 67.4856 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 311 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 19.621118 lbs |
| Part Number | Description | Dimensions (L x W x H) | Max Capacity |
|---|---|---|---|
| Furnish New Battery Enclosure MNBE A (1 shelf) 8D 8D midnitesolar.com | Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf. Two cabinets can be stacked horizontal or vertical for expansion. Remove middle | 29.000 x 14.500 x 10.82 in |
2 units |
| Furnish New Battery Enclosure MNBE C (3 Shelf) 8D 8D midnitesolar.com | MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two | 34.000 x 15.250 x 10.82 in |
4 units |
| Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) 8D 8D midnitesolar.com | Battery Enclosure with locking door and one shelf. Outdoor 3R rain type design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated a | 28.500 x 26.250 x 10.82 in |
4 units |
| Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) Deluxe e/w 250A Breaker and 4/0 cabling 8D 8D midnitesolar.com | Battery Enclosure with locking door and one shelf. Outdoor 3R rain proof design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated | 28.500 x 26.250 x 10.82 in |
4 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
4 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
4 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
4 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
4 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
4 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
4 units |
