Furnish New Battery Exide Battery Sprinter Pure Power S6V3100PP FM6

Name: Furnish_New_Battery_Exide_Battery_Sprinter_Pure_Power_S6V3100PP_FM6
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Exide_Battery_Sprinter_Pure_Power_S6V3100PP_FM6
Price: 404.35 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Exide Battery Sprinter Pure Power S6V3100PP FM6

$404.35

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Sprinter Pure Power S6V3100PP FM6

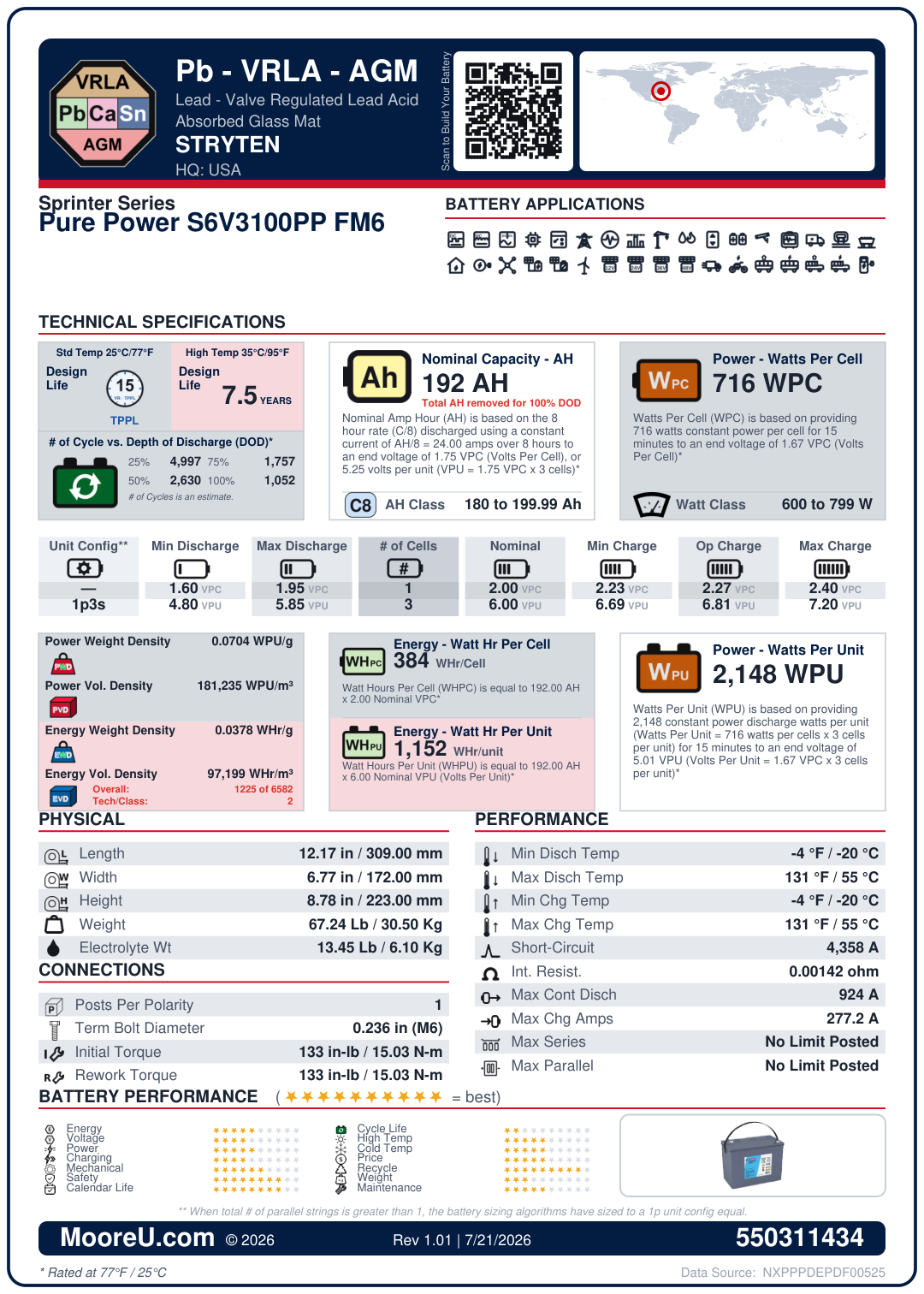

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Battery Model	Exide Battery Sprinter Pure Power S6V3100PP FM6
Adjustment	1
AH Per String	192
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	3
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	4358
Internal Resistance	0.00142 Ohms
Dimensions (L x W x H)	12.1653609 x 6.7716572 x 8.7795323 in
Weight	67.24091 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	924 Amps
Max Charge Amps	277.2 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	716
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	13.448182 lbs
